Pattern

There are thirteen pages of pattern pieces for this bodice, all drawn on standard pattern paper with a 1" wide grid.  The pieces, presented in sections, are for the inner bodice, the plastron, back lace overlay, sleeve, and the belt and collar.

There are four pieces, Figures 1-4 for the inner bodice which are the front, back, side back, side side back. The five pieces for the plastron, Figures 5-9 are for the lower base, beaded overlay, front lace placket, chiffon panel, base yoke, and the beaded overlay.  There is one pattern, Figure 10, for the back beaded lace overlay.  There are two pattern pieces for the sleeves, one for the undersleeve (Figure 11) and one for the over sleeve (Figure 12). The belt and collar. are on one page, Figure 13.

Inner Bodice

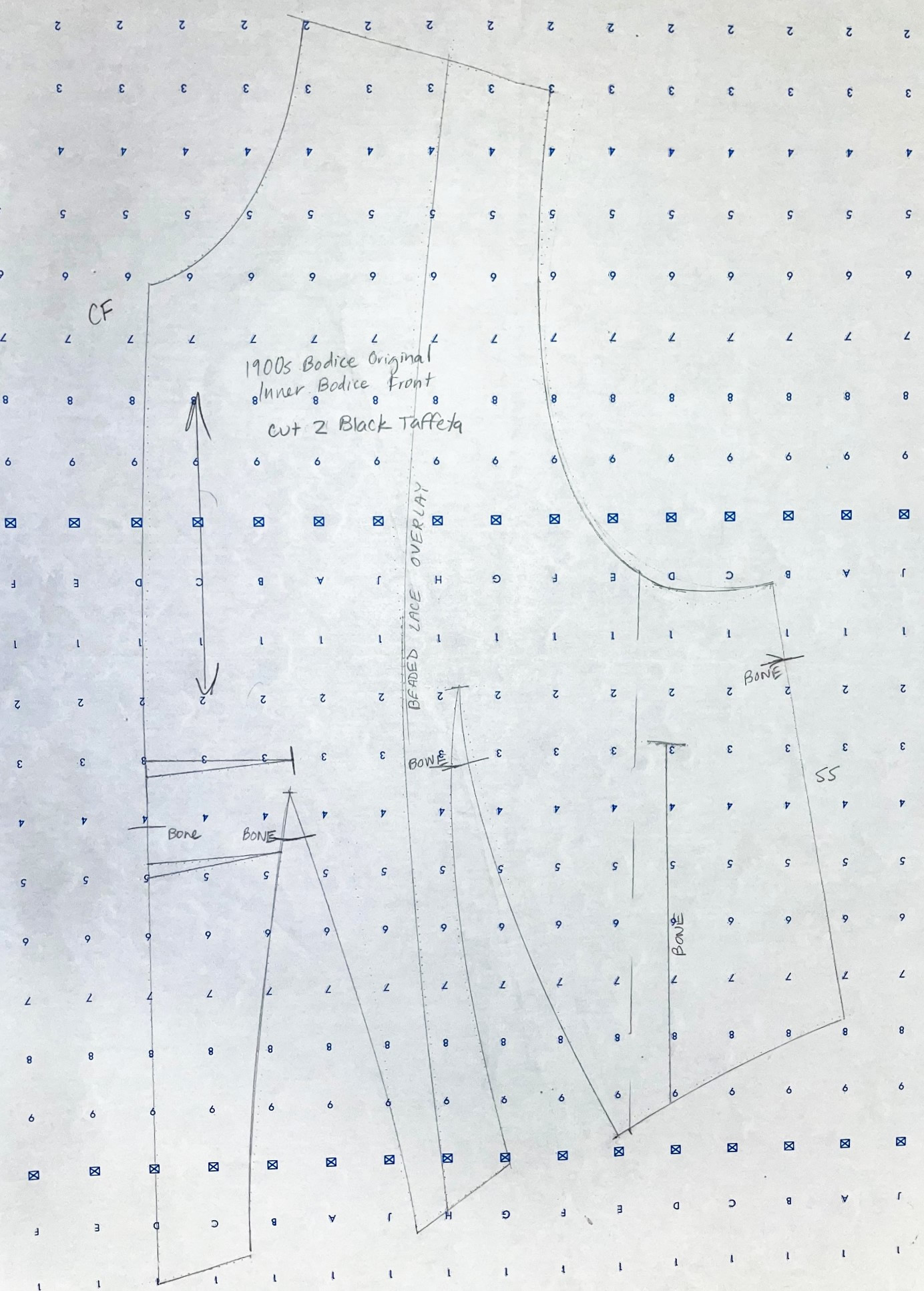

Figure 1: Front

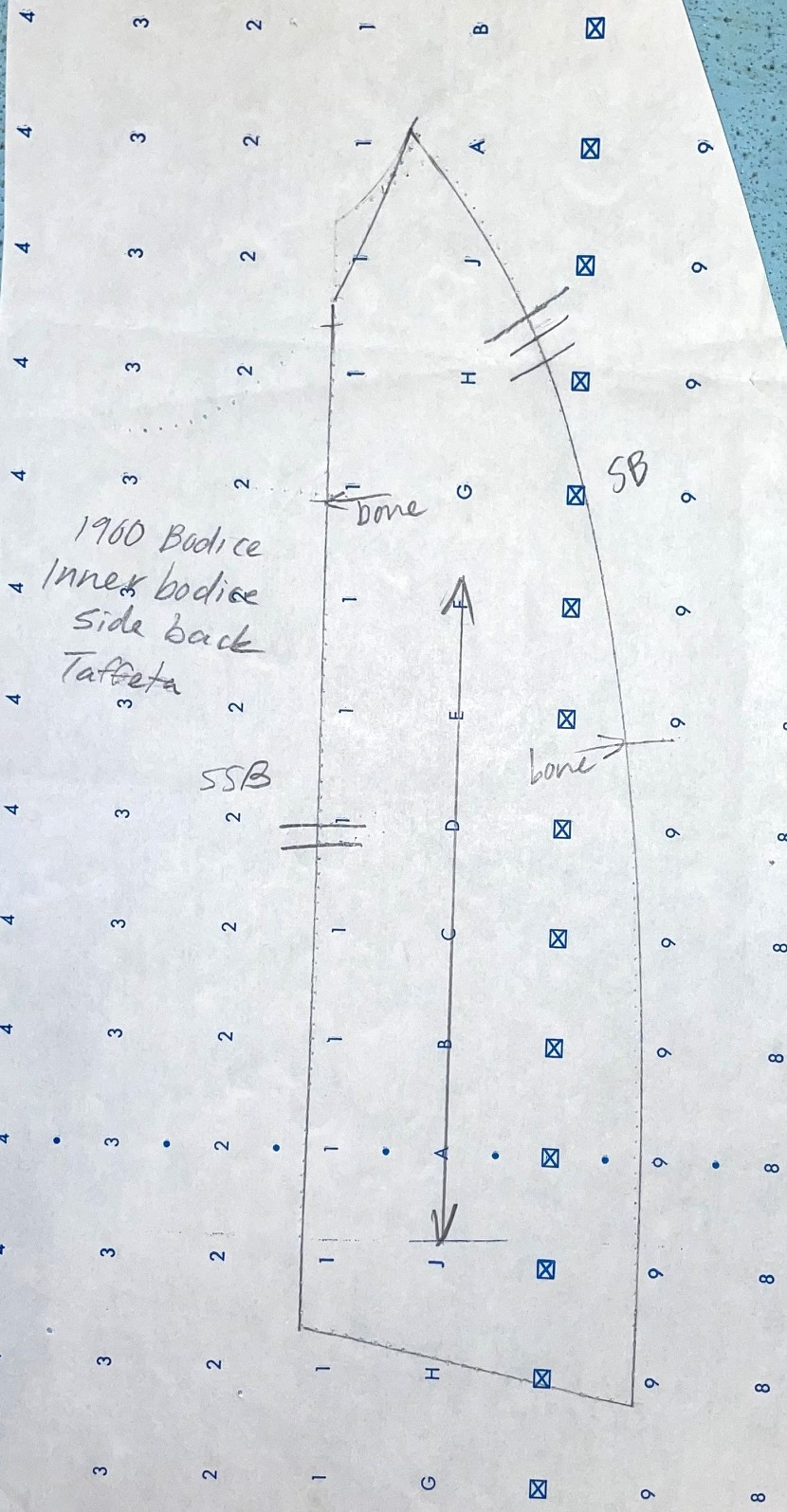

Figure 2: Side Back

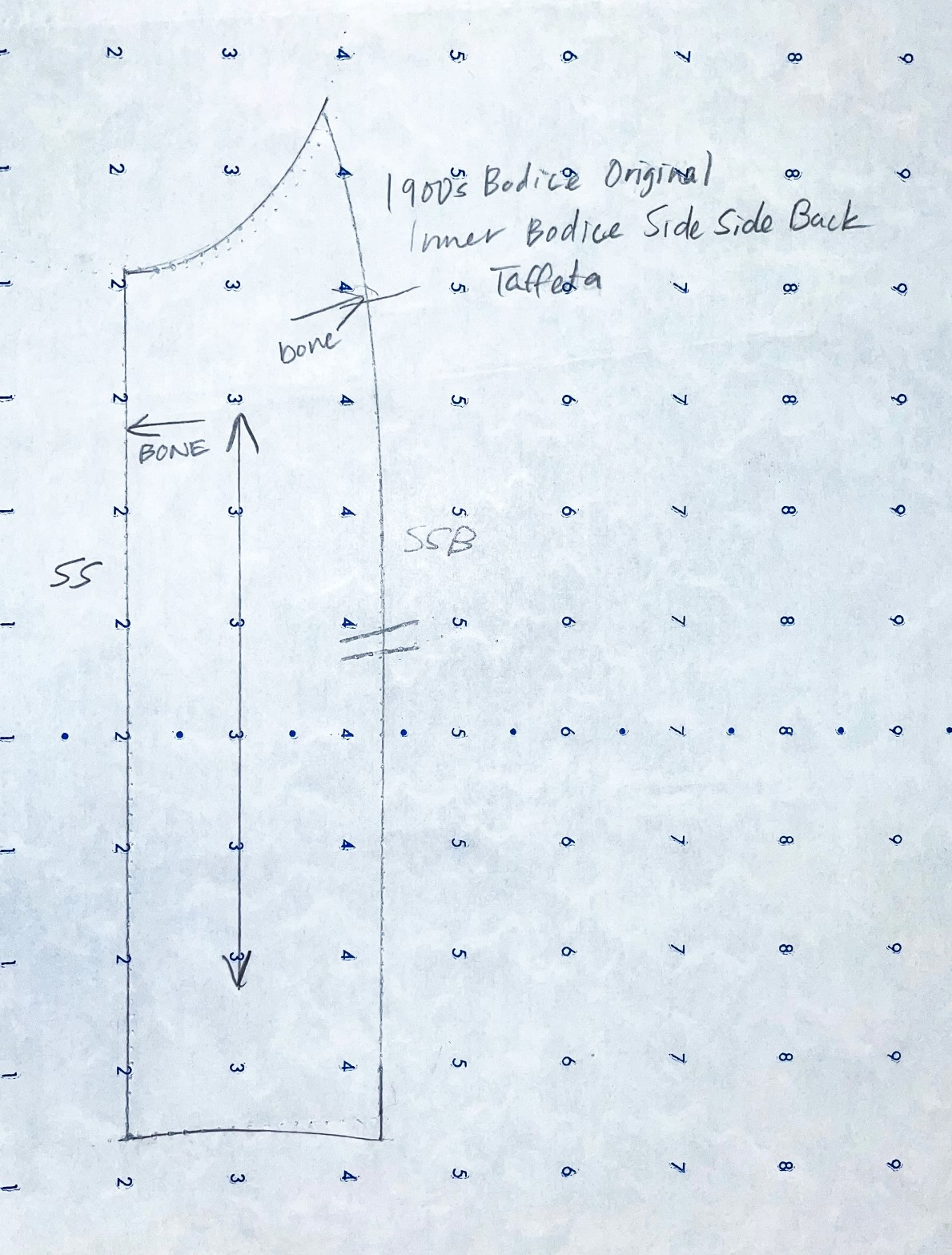

Figure 3: Side Side Back

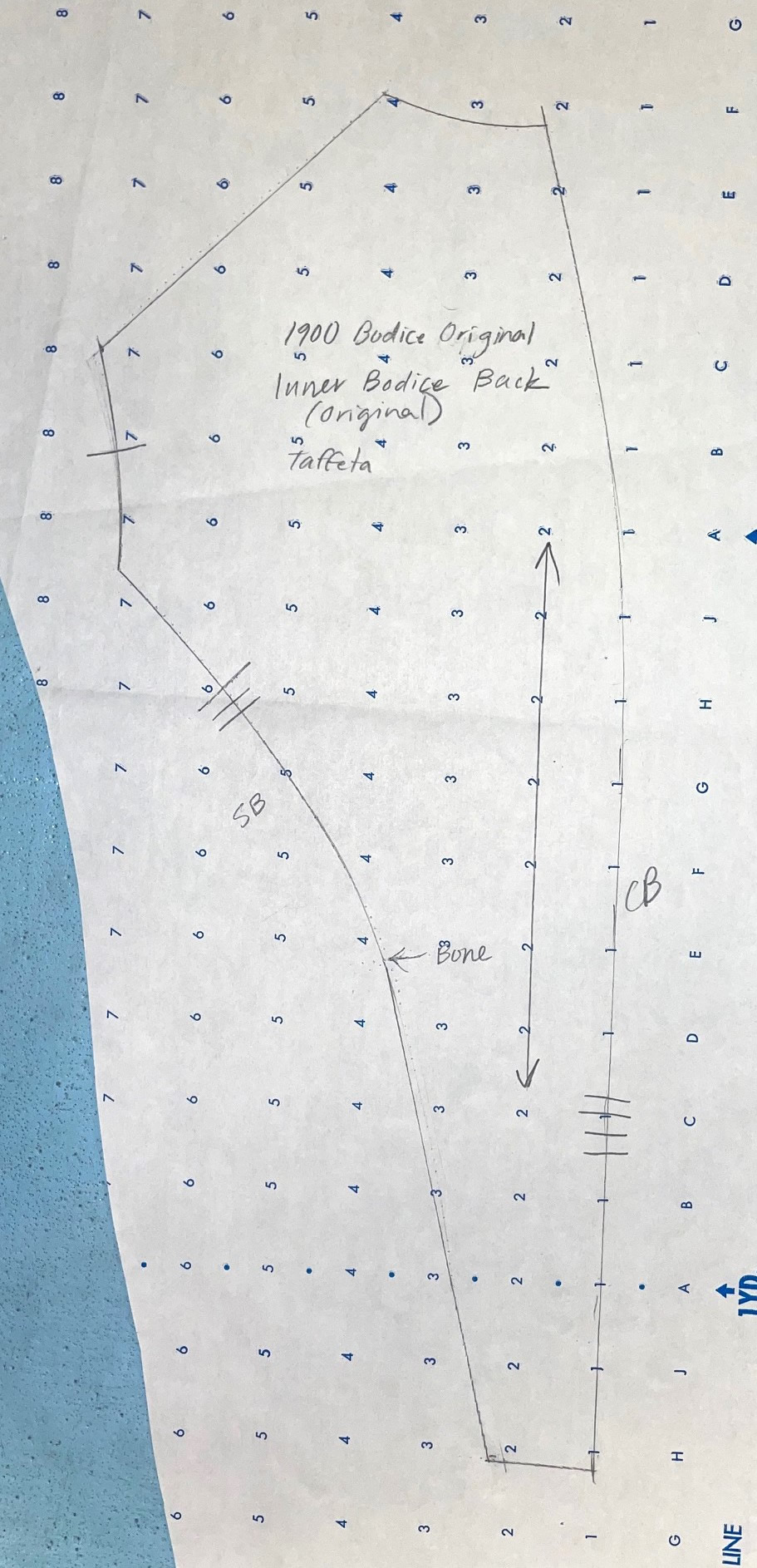

Figure 4: Back

Plastron

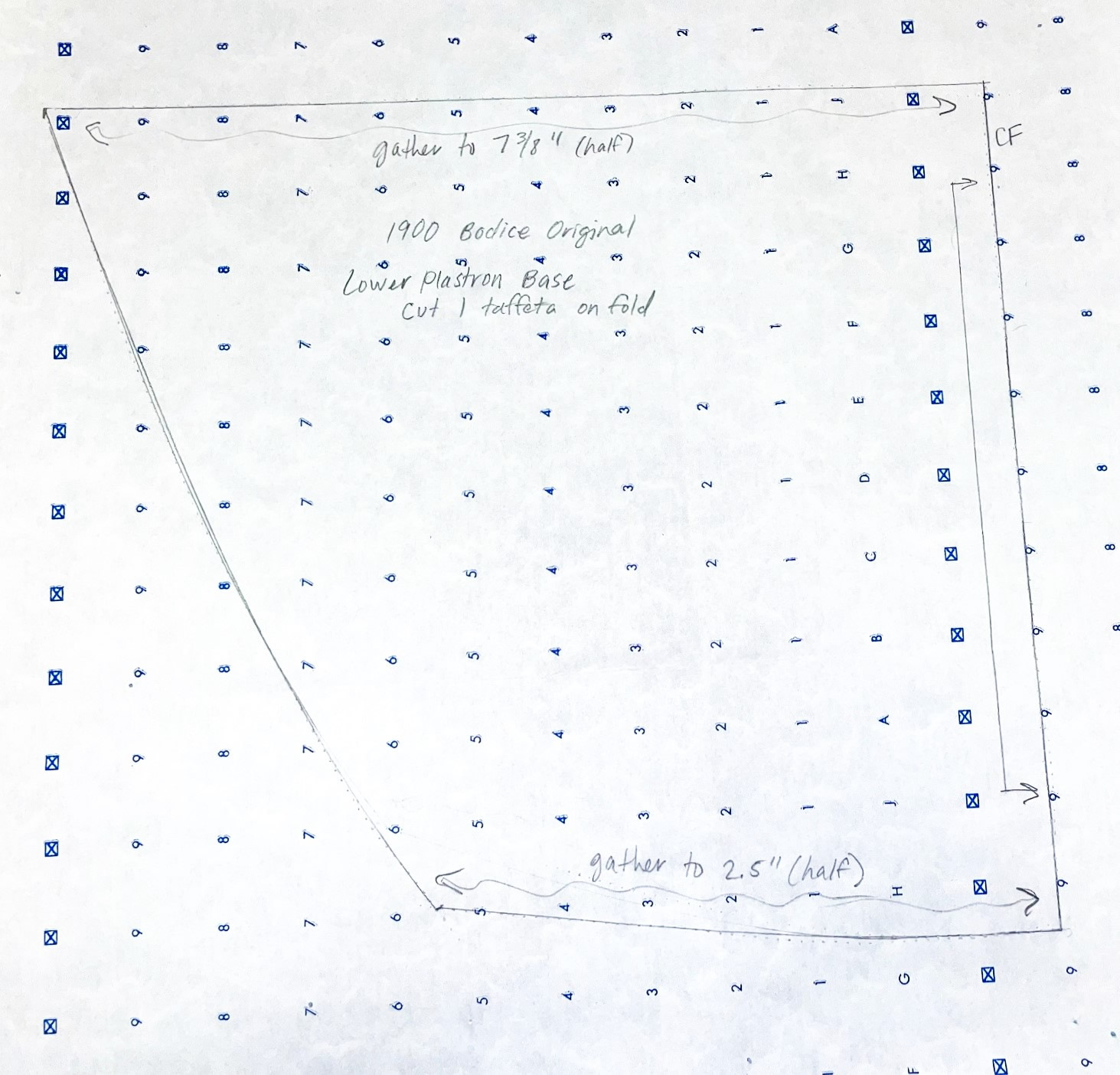

Figure 5: Lower Plastron Base

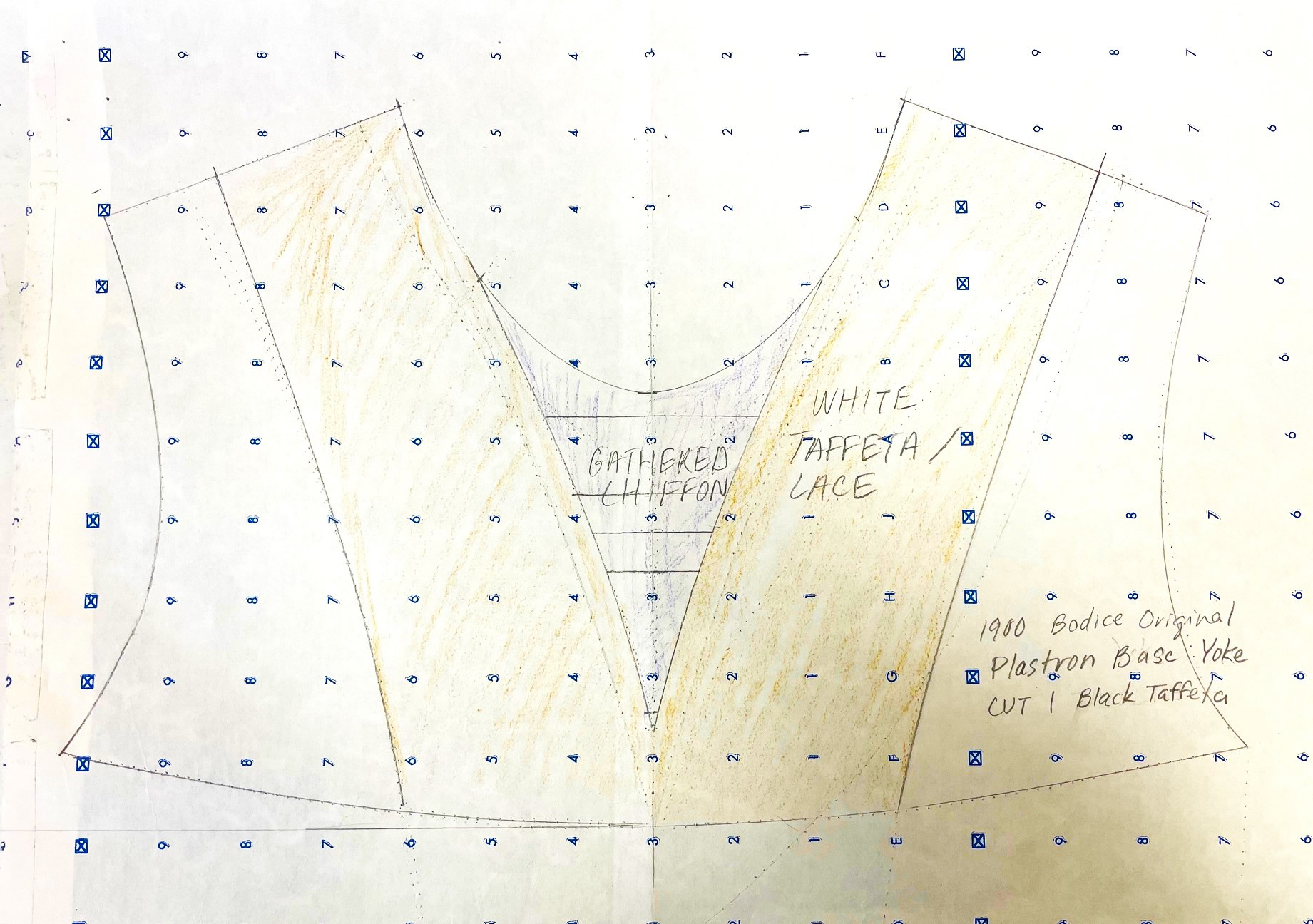

Figure 6: Plastron Base Yoke

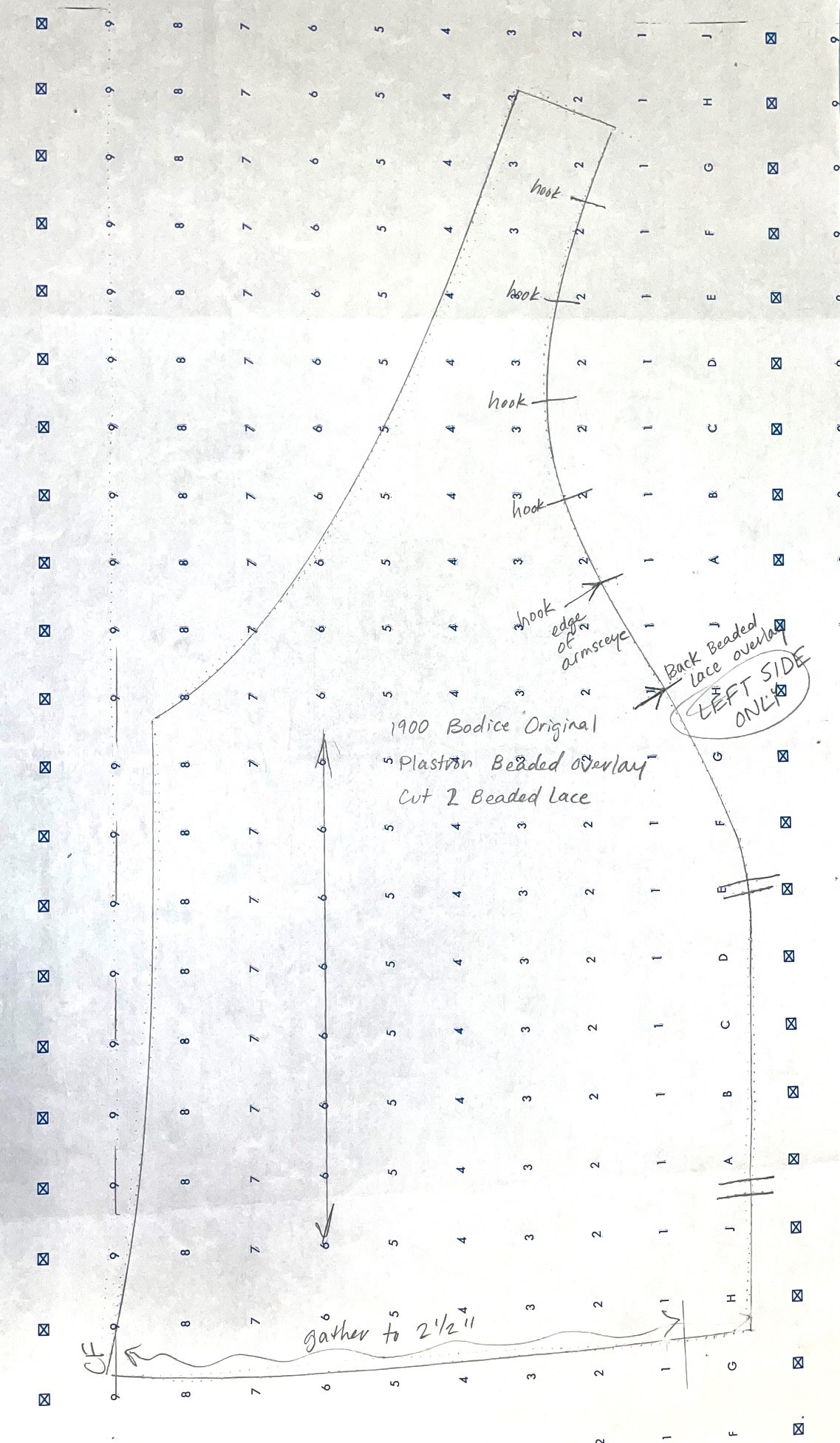

Figure 7: Plastron Beaded Overlay

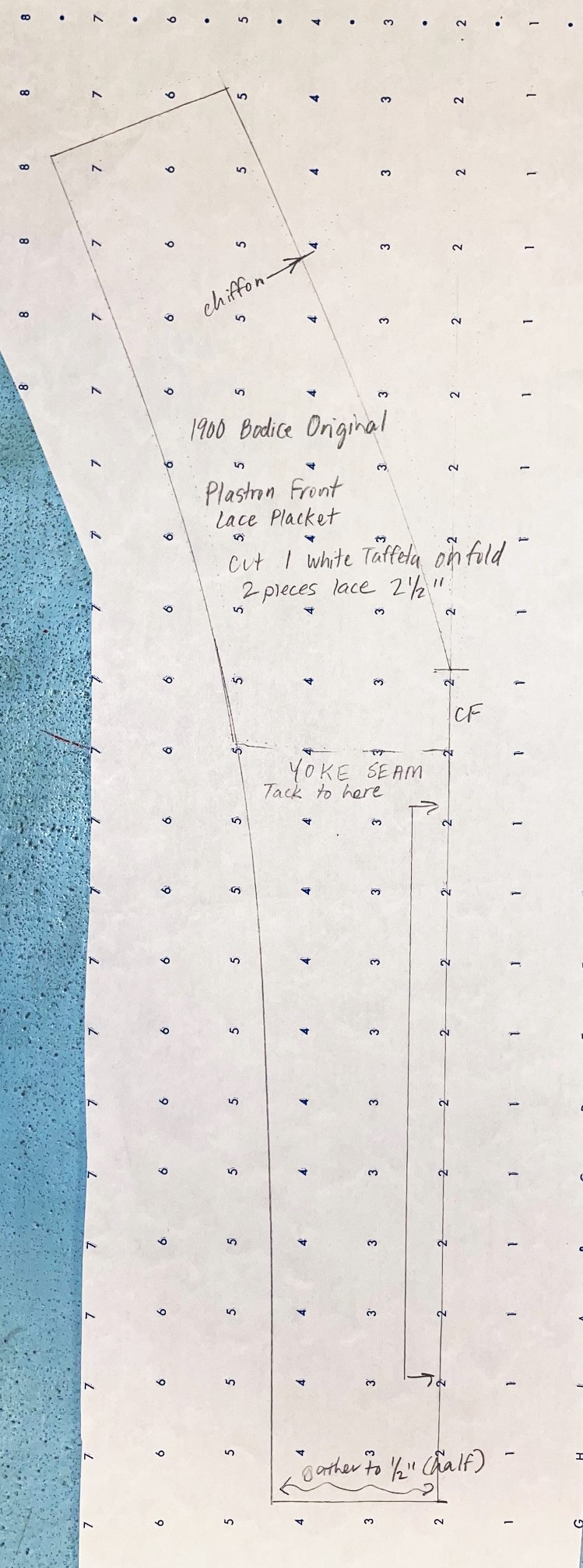

Figure 8: Plastron Front Lace Placket

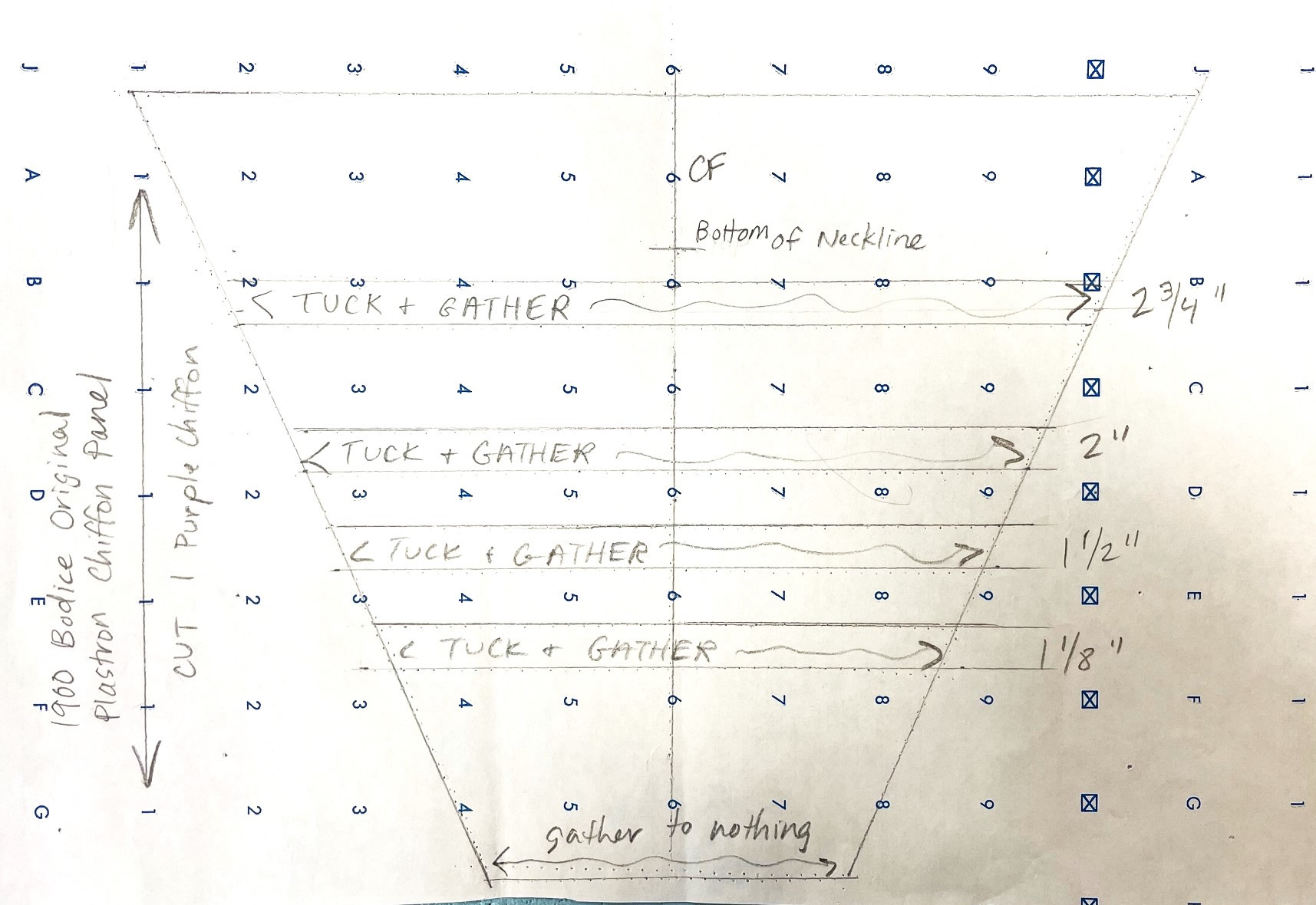

Figure 9: Plastron Chiffon Panel

Back Beaded Lace Overlay

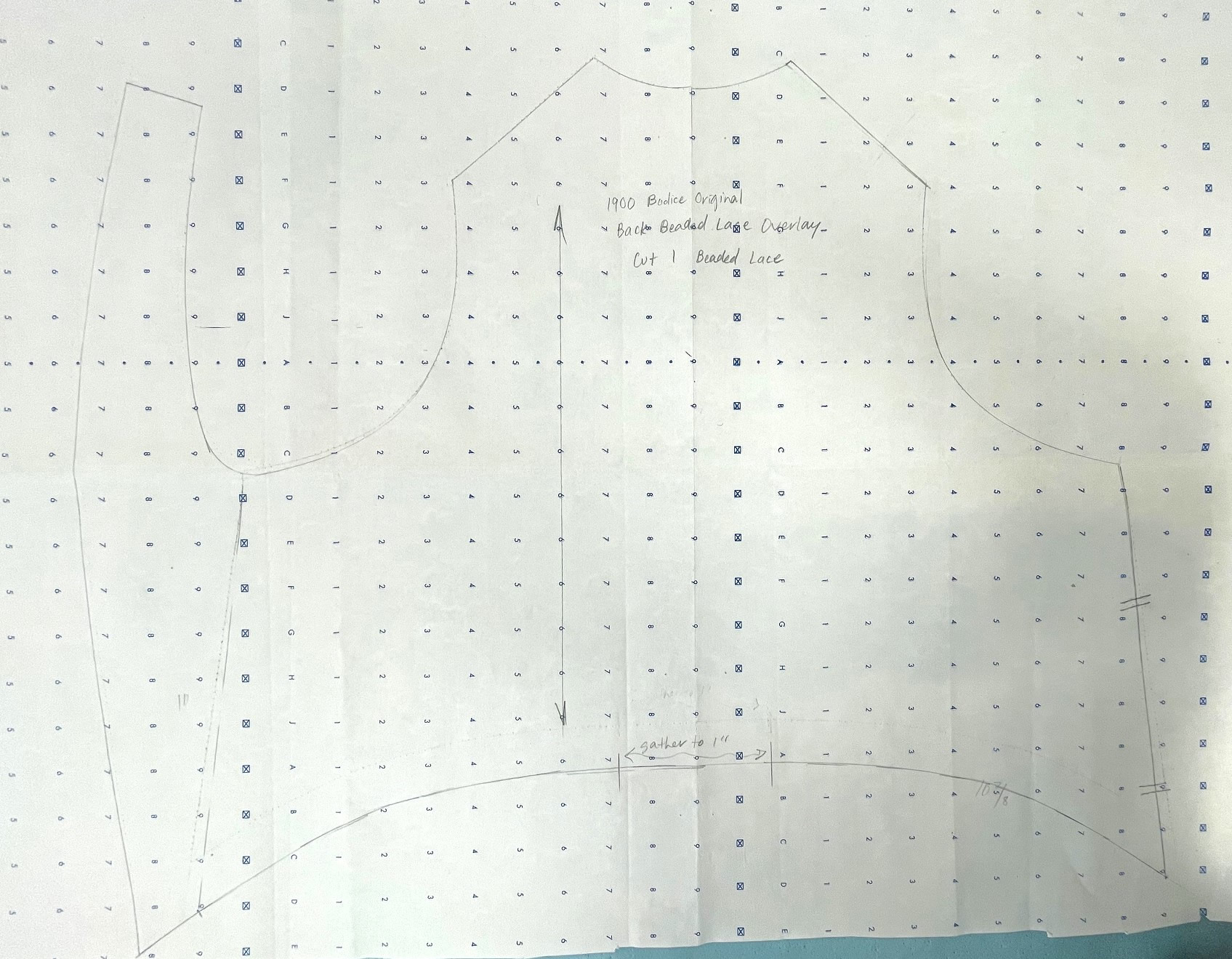

Figure 10: Back Overlay

Sleeve

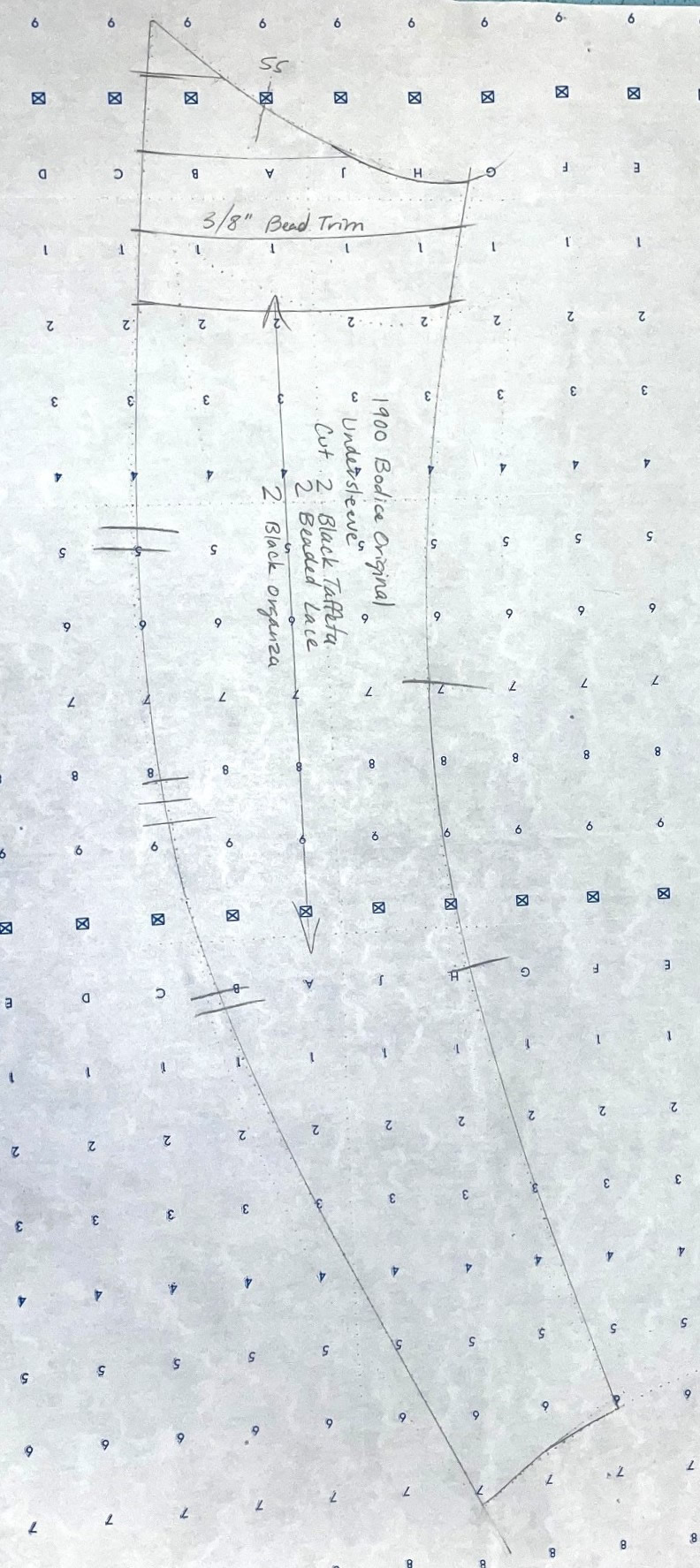

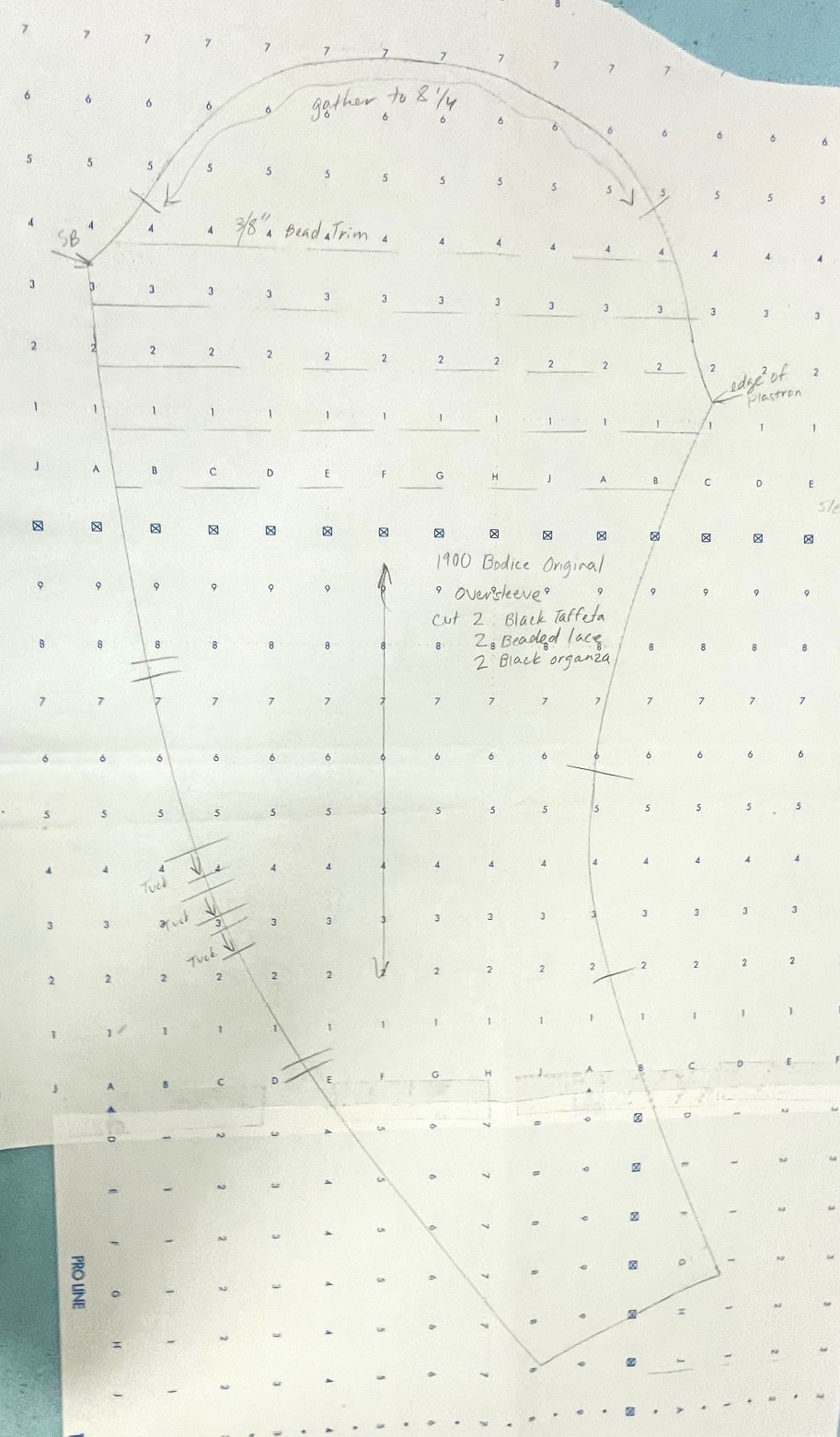

Figure 11: Undersleeve	Figure 12: Oversleeve

Collar and Belt

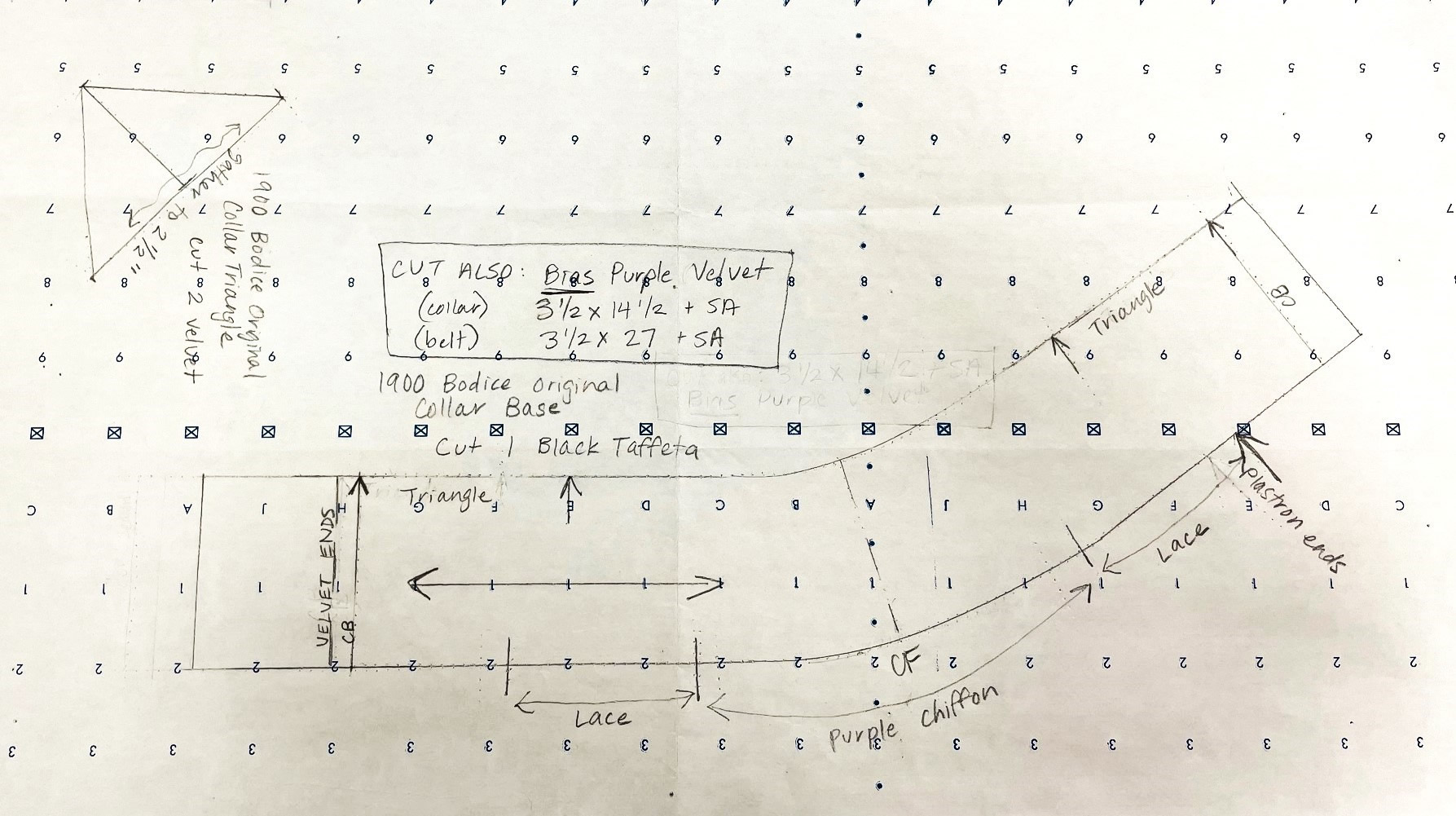

Figure 14: Collar and Belt

© Matty Blatt, 2024
