Dark Gray and Cream Dotted Bodice Pattern

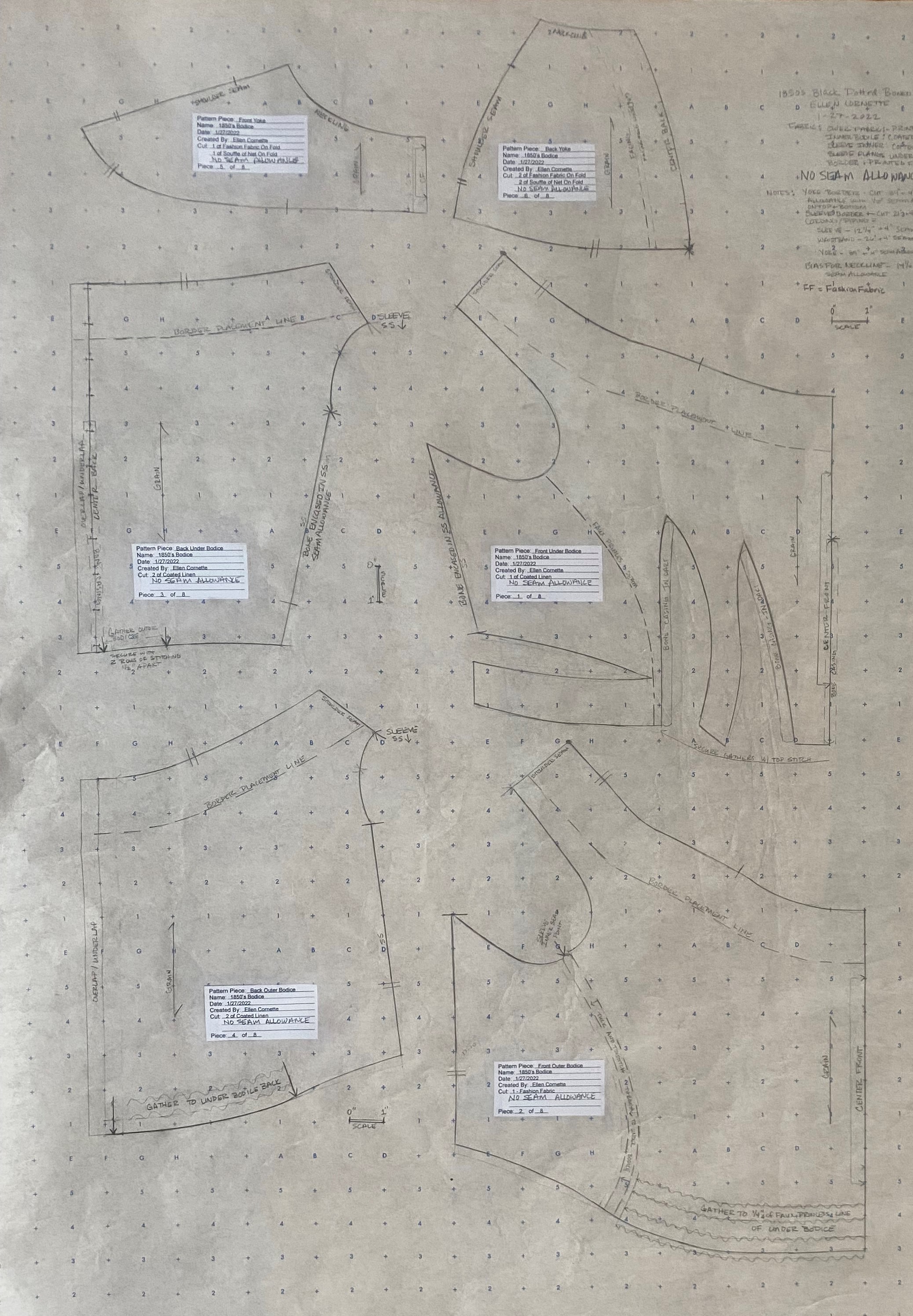

The pattern is printed on standard dotted pattern paper, with a 1" square scale.  See the detailed description and construction techniques for measurements of the original garment.

Fabric

Outer Fabric: Printed Silk
Inner Fabric: Coated Linen
Inner Sleeve: Cotton
Sleeve Flange Under Layer: China Silk
Border: Printed Floral Silk

Cutting Notes

Yoke Border: Cut 39" plus 4" seam allowance with 1/2" seam allowance on top and bottom
Sleeve Border: Cut 21" plus 4" seam allowance with 1/2" seam allowance on top and bottom
Cording/Piping for Sleeve: Cut 12 1/4" plus 4" seam allowance
Cording/Piping for Bottom Edge (waistband): Cut 26" plus 4" seam allowance
Cording/Piping for Yoke: Cut 39" plus 4" seam allowance
Bias for Neckline: Cut 14 1/4" x 2" plus seam allowance

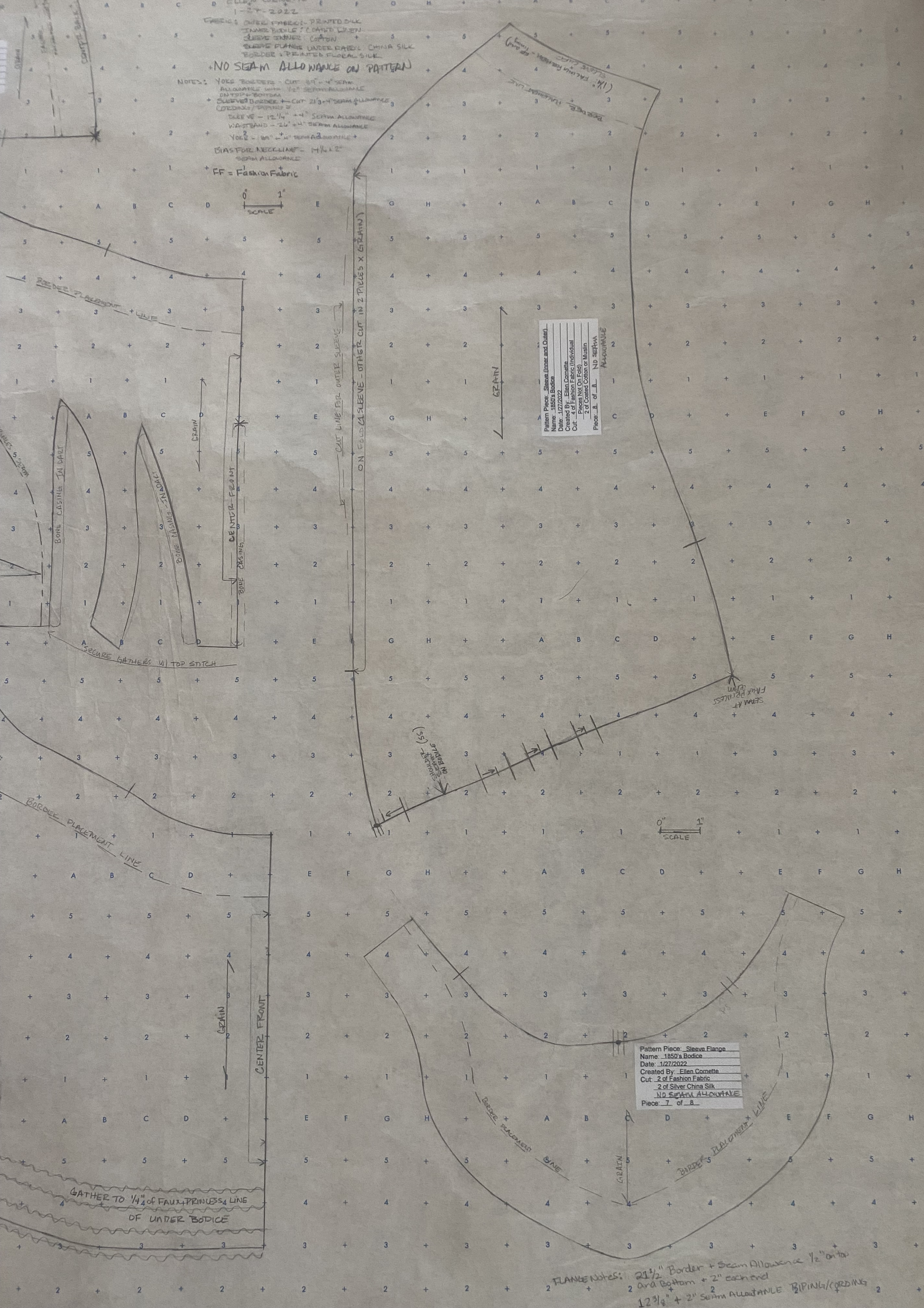

Figure 2: Pattern Detail #1

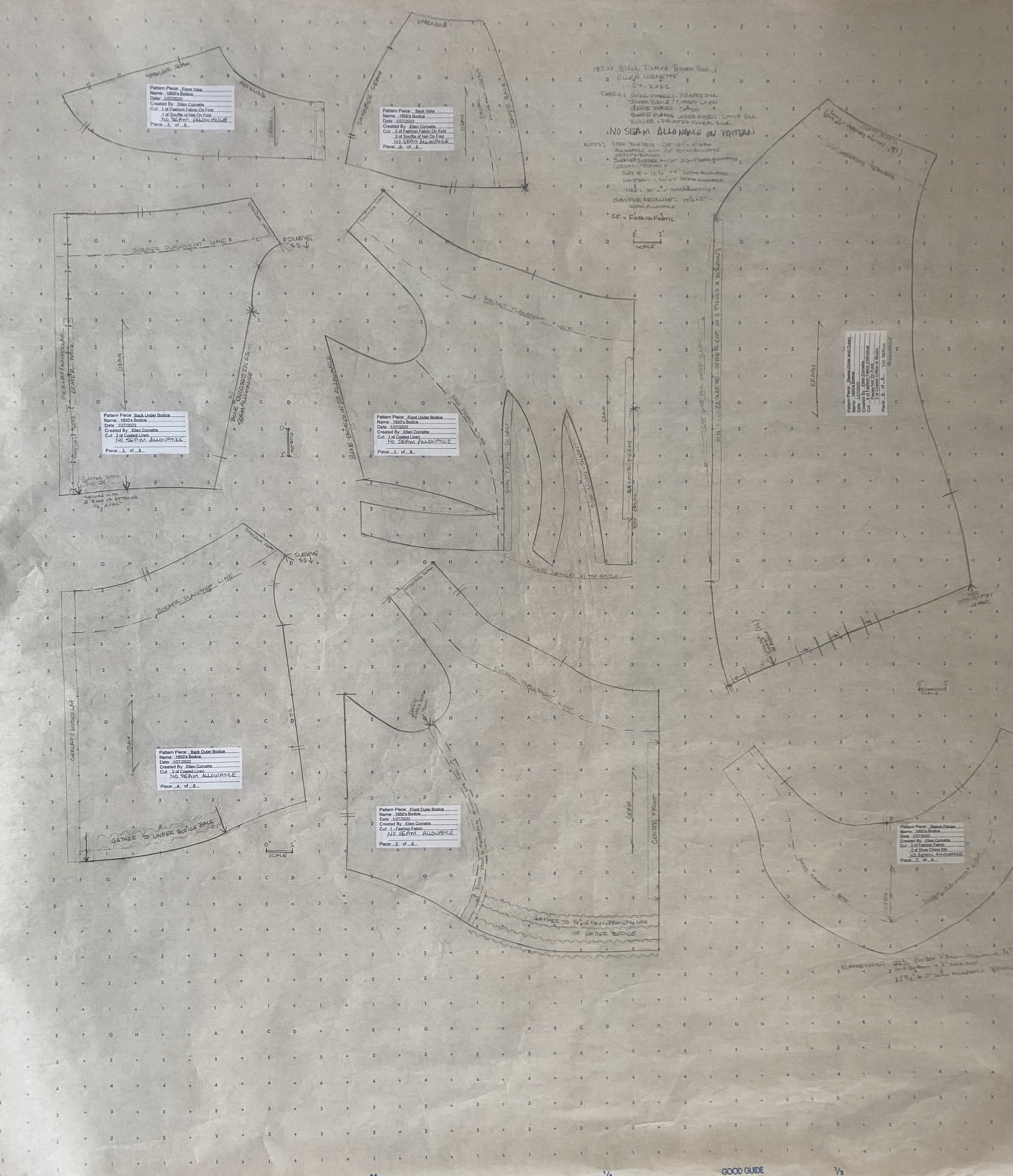

Figure 3: Pattern Detail #2

Ellen Cornette, 2022
